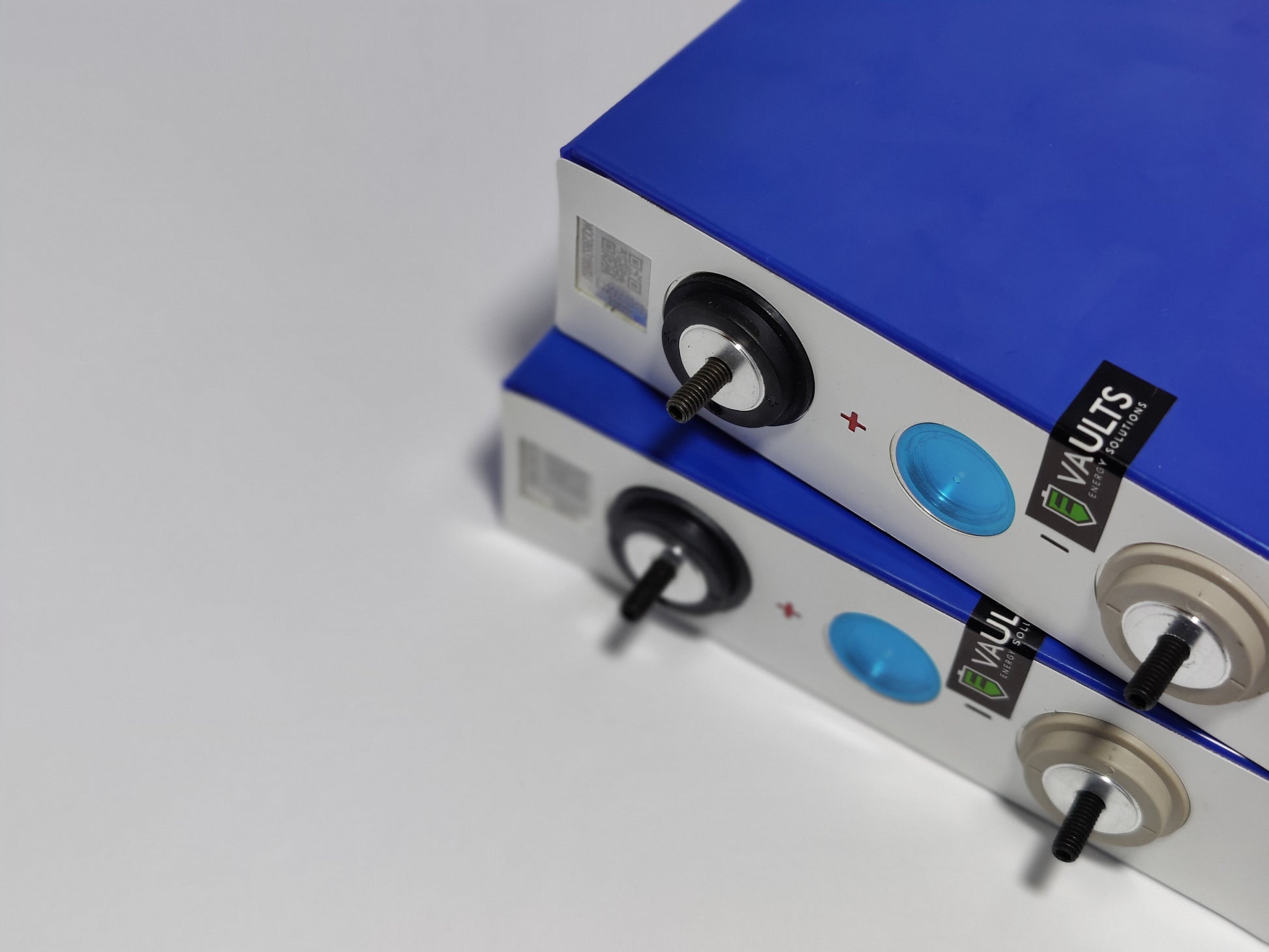

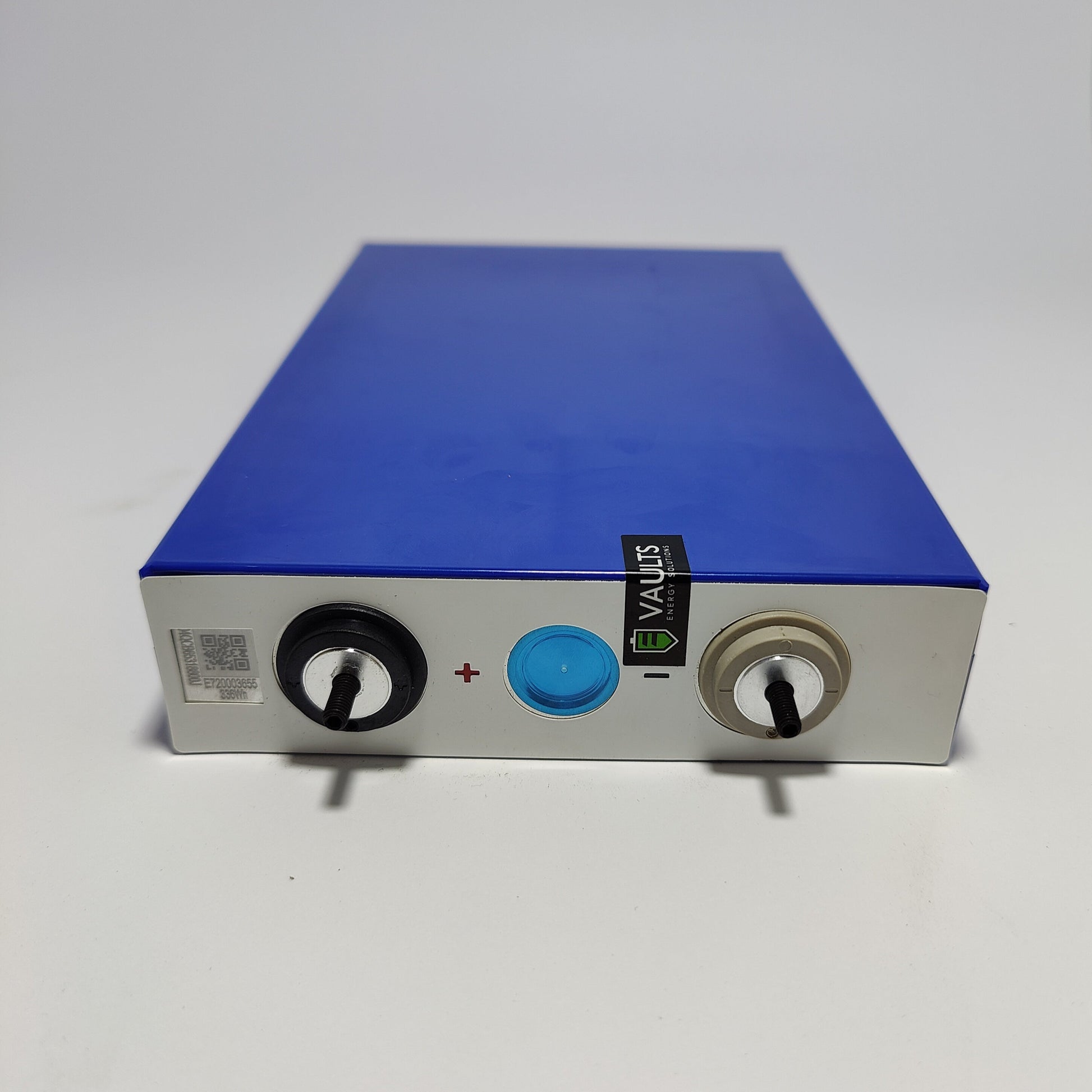

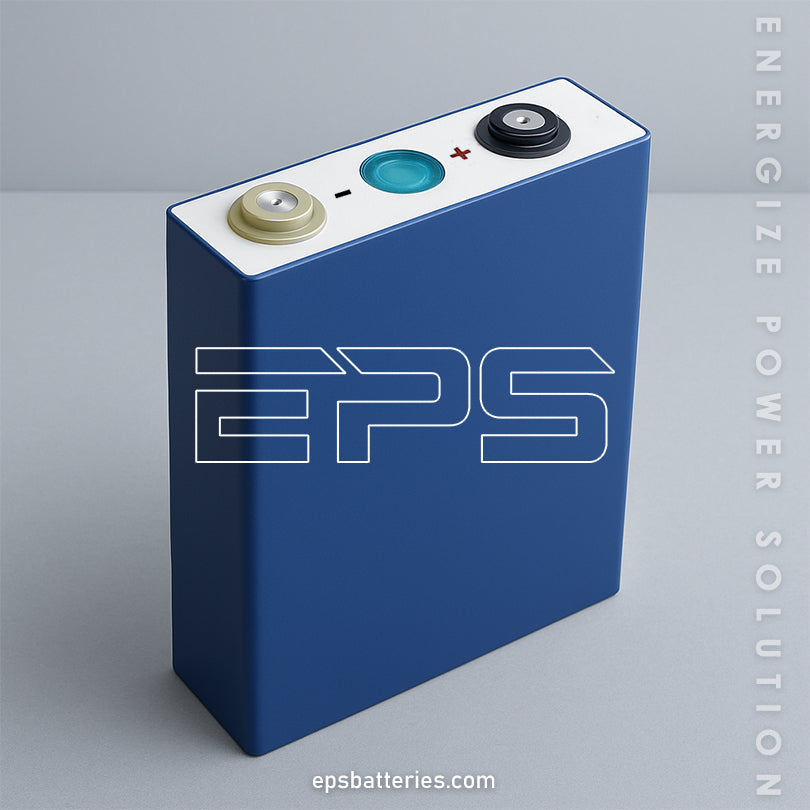

EVE Lithium Phosphate Battery Cell 3.2 Volt 105 Ampere

EVE LF105 Lithium Iron Phosphate (LiFePO₄) Cell – 105Ah

General Specifications

• Model: LF105

• Chemistry: LiFePO₄ (Lithium Iron Phosphate)

• Nominal Voltage: 3.2V

• Nominal Capacity: 105Ah

• Energy: 336 Wh

• Cycle Life: ≥ 4000 cycles (at 80% DOD, 25°C)

• Internal Resistance: ≤ 0.35 mΩ

• Weight: ~2.0 kg

• Dimensions (L × W × H): 173 × 48 × 135 mm

Electrical Characteristics

• Operating Voltage Range: 2.5V – 3.65V

• Standard Charge Current: 0.5C (52.5A)

• Max Continuous Charge Current: 1C (105A)

• Standard Discharge Current: 0.5C (52.5A)

• Max Continuous Discharge Current: 1C (105A)

• Peak Discharge Current (≤10 sec): 2C (210A)

Temperature Ranges

• Charge Temperature: 0°C to +55°C

• Discharge Temperature: -20°C to +60°C

• Storage Temperature: -10°C to +45°C (long term)

Key Features

• Long cycle life (10+ years lifespan in solar applications)

• High safety with LiFePO₄ chemistry

• Compact and lightweight design

• Stable voltage and high efficiency

• Environmentally friendly, non-toxic, RoHS compliant
